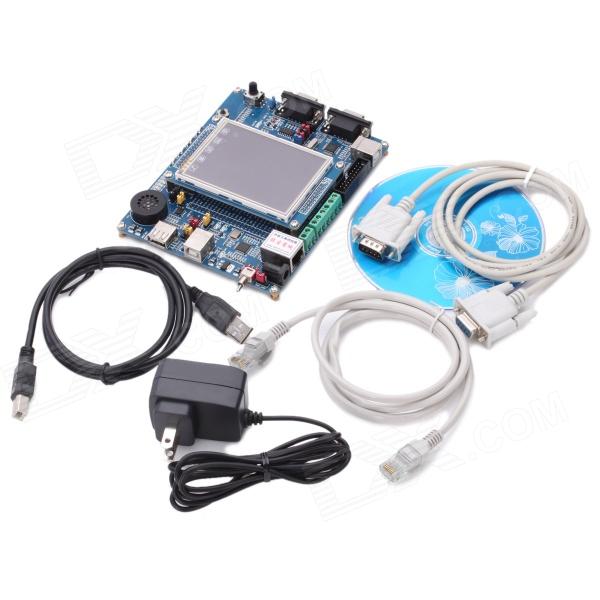

комплектация как на фотографии

512 КБ встроенной флэш , поддержка ISP и IAP , 64 КБ SRAM

 обработка со скоростью до 100 МГц, поддержка восьми областей защиты блока памяти (MPU )

*Built-nested vector interrupt controller

*support the SSP, UART, AD / DA, timer, GPIO, etc., can be used for memory to memory transfers

*AHB multi-layer matrix with 8-channel DMA controller, general-purpose (GPDMA)

*standard JTAG test / debug interface and debug serial line and serial line tracking port option

*simulation trace module supports real-time tracking

*4 low-power modes: sleep, deep sleep, power-down, deep power-down

*On-chip integrated power-on reset circuit

*Built-in systems beat the timer (SysTick), to facilitate the operating system migration.



  Extensive on-board resources:

*2 CAN bus communication interface (CAN Transceiver: SN65VHD230);

*RS485 communication interface (485 Transceivers: SP3485),2 RS232 serial interface;

*RJ45-10/100M Ethernet network interface (Ethernet PHY: DP83848)

*DA output interface (USB sound card can do experiments on-board)

*AD input interface (adjustable potentiometer input)

*Color TFT display interface (2.8-inch or 3.2-inch color TFT)

*USB2.0 Interface, USB master and USB slave Interface;SD / MMC card (SPI) interface (available with FAT12, FAT16, FAT32 file system)

*IIC Interface (24LC02);SPI serial FLASH interfaces (AT45DB161D)

*2 user keys, 2 function keys and the INT0 Reset button, 8 LED lights

*1 Five direction keys to enter the joystick

*The standard JTAG, Simulation debugging interface ,Serial ISP download function.

*Integrated USB emulator: simulation and debug to support online and support KEIL, IAR and etc.

*External 5V power supply or USB interface provide 5V power supply.

*Open all the IO for the secondary development of other applications.



 3.2" TFT LCD Module

Feature:

   1.Size: 3.2"

   2.Resolution:  QVGA 262K 240*RGB*320

   3.Controller: IL9320

   4.Touch Panel: 4-wire

   5.5 LEDs Parallel for Backlight

   6.RSM1843 touch panel controller onboard  with compatible  ADS7843;

   7.Support a SD card interface
   8.2.6-3.3V operating voltage
